think about hexagram world


Draw it by using the compact circular arc and the T-slider.


Make various points of view by the combination of six sheets of circular arcs.
ANGLE-L

"Four kinds of expressions" can be done in the combination of R1600 and R1200.

The expression of the little object.
ANGLE-M

"Four kinds of expressions" can be done in the combination of R800 and R600.

The expression of the object in the middle.
ANGLE-S

"Four kinds of expressions" can be done in the combination of R400 and R300.

The expression of the big object.

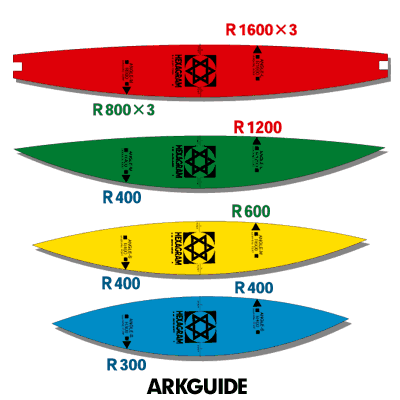

The "size" and" quantity" of the arc guide.

กR1600/1200=3-pieces @กSIZE/T335~W48@
กR1200/R400=1-pieces@กSIZE/T333~W48@
กR600/R400=1-pieces@กSIZE/T300~W48
กR400/R300=1-pieces@กSIZE/T267~W54
œThickness/4mm
œMade of the acrylic fiber of the transparency.

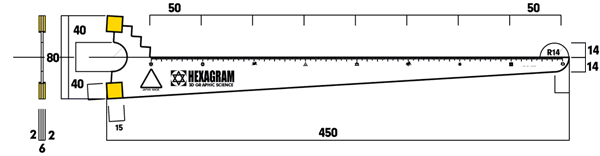

T-SLIDER
กSIZE/H80~W450 กThickness/2mmกMaterial/acrylic fiber of white
กThe mark of the T-slider./1mmEhot stamp.


Buck to the main page of hexagram tool.
